Shield RMSc pėdsako standartas

Shield RMSc footprint standard

Kokį kolimatoriai galėsite montuoti ant tvirtinimo su RMSc arba Shield RMSc pėdsaku? Ar galėsite įdiegti Sig Sauer Romeo Zero ant tos pačios plokštelės kaip Shield RMSc? Šiame straipsnyje aptariame visą Shield RMSc pėdsako suderinamumą.

Pėdsako suderinamumas paaiškintas

Ką reiškia „pėdsakas“? Terminas pėdsakas reiškia lizdų ir varžtų skylių struktūrą optinio įrenginio pagrinde.

O ką reiškia, jei pėdsakai yra suderinami?

Kiekvienas optinis taikiklis turi pagrindą montavimui. Pagrindas susideda iš skirtingose pozicijose esančių kaiščių ir skylių varžtams, naudojamiems taikiklio tvirtinimui prie tvirtinimo. Jei bet kurie du taikikliai naudoja tą patį pagrindą montavimui, mes sakome, kad jie turi tą patį pėdsaką.

Šiame straipsnyje parodome, kurie kolimatorių taikikliai turi tą patį pėdsaką.

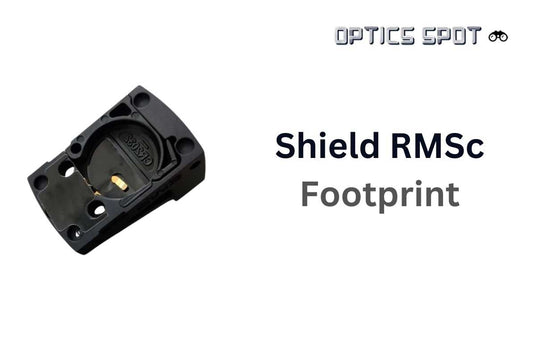

Shield RMSc pėdsako modelis

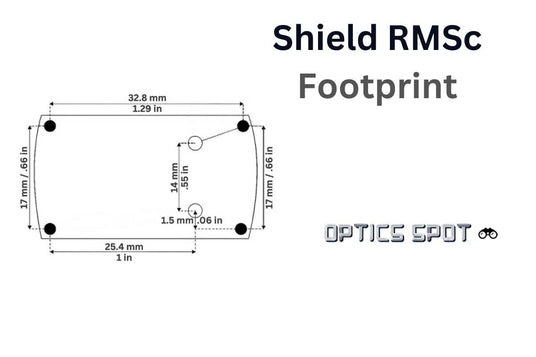

Shield RMSc pėdsakas susideda iš keturių lizdų taikiklio kampuose ir dviejų varžtų skylių taikiklio gale.

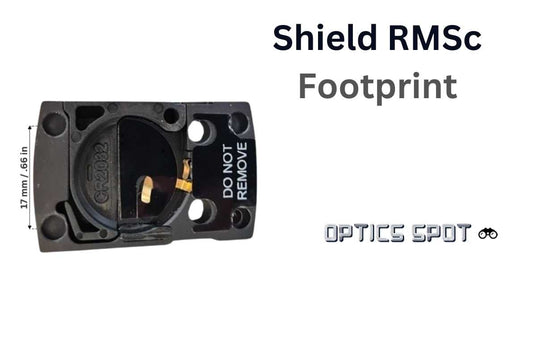

Priekiniai ir galiniai lizdai yra 17 mm / 0,66 colio atstumu vienas nuo kito. Nuo galinių lizdų iki priekinių lizdų atstumas yra 32,8 mm / 1,29 colio. Šių keturių lizdų padėtis atitinka kaiščių padėtį, esančią bet kurio tvirtinimo paviršiaus montavimo paviršiuje pagal šį standartą.

Varžtų skylės yra optinio įrenginio galinėje dalyje. Jos naudojamos taikiklio tvirtinimui prie tvirtinimų. Šios dvi varžtų skylės yra 14 mm / 0,55 colio atstumu viena nuo kitos.

Varžtai, kurie turi būti naudojami šioms varžtų skylėms, visada yra įtraukti į komplektą su taikikliu.

Suderinami kolimatoriai

RMSc pėdsaką naudoja daugelis kitų gamintojų rinkoje.

Žemiau galite rasti visą kolimatorių taikikliai sąrašą, kurie veiks su Shield RMSc pėdsaku.

Shield RMSc standard

Kolimatoriai su Shield RMSc pėdsaku

Peržiūrėti viską

Kaip montuoti kolimatorių su Shield RMSc pėdsaku

Tai priklauso nuo to, kokį įrenginį norite montuoti.

Kiti pėdsako standartai

Yra daug skirtingų kolimatorių taikikliai pagrindų, tačiau kiti dažniausiai pasitaikantys yra šie:
