Trijicon RMR pėdsako standartas

Trijicon RMR footprint standard

Kuris kolimatoriai veiks su Trijicon tvirtinimu? Ar galėsite įdiegti Holosun 507C ant tos pačios plokštelės kaip Trijicon RMR kolimatorių taikiklį? Šiame straipsnyje aptariame visą pėdsako suderinamumą.

Pėdsako suderinamumo paaiškinimas

Ką reiškia „pėdsakas“? Terminas pėdsakas reiškia lizdų ir varžtų skylių struktūrą optinio įrenginio pagrinde.

O ką reiškia, jei pėdsakai yra suderinami? Kiekvienas optinis taikiklis turi tam tikrą montavimo pagrindą. Pagrindą sudaro įvairiose pozicijose esantys kaiščiai ir skylės varžtams, naudojamiems taikiklio tvirtinimui prie tvirtinimo.

Jei bet kurie du taikikliai naudoja tą patį montavimo pagrindą, sakome, kad jie dalijasi tuo pačiu pėdsaku. Šiame straipsnyje parodome, kurie kolimatoriai dalijasi tuo pačiu pėdsaku.

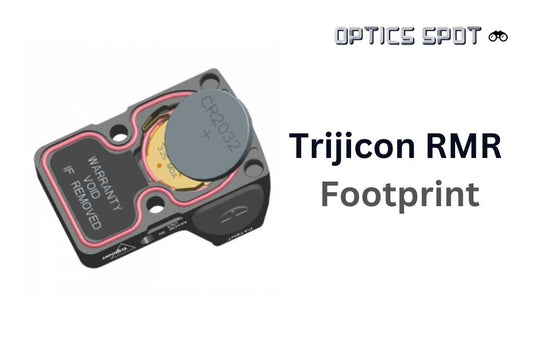

Trijicon RMR pėdsako modelis

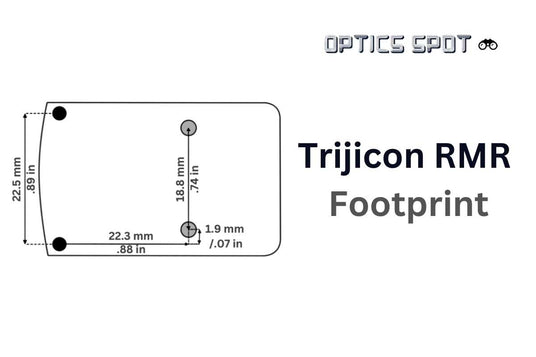

RMR pėdsakas susideda iš dviejų lizdų priekyje ir dviejų varžtų skylių viduryje.

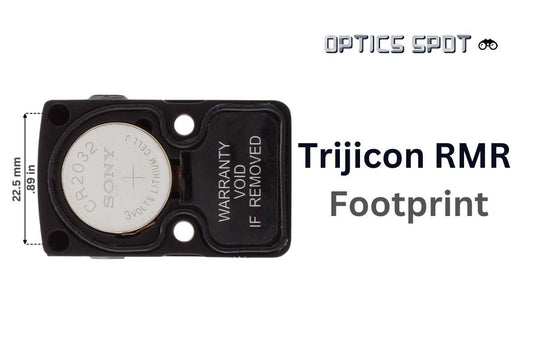

Priekiniai lizdai yra 22,5 mm / 0,89 colio atstumu vienas nuo kito, kiekvienas yra priekinio kampo pozicijoje. Šių dviejų lizdų padėtis atitinka smeigių padėtį, esančią bet kokio šio standarto montavimo paviršiuje.

Varžtų skylės yra maždaug optinio įrenginio viduryje. Jos skirtos tvirtinimui prie laikiklio. Šios dvi varžtų skylės yra 18,8 mm / 0,74 colio atstumu vienas nuo kito.

Varžtai, kurie naudojami šioms skylėms, visada yra įtraukti į paketą su optika.

Suderinama kolimatoriai

RMR yra vienas iš dažniausiai naudojamų pėdsakų rinkoje.

Žemiau galite rasti pilną taikikliai sąrašą, kuris veiks su Trijicon pėdsaku.

Trijicon RMR standard

Kolimatoriai su Trijicon RMR pėdsaku

Peržiūrėti viską

Kaip montuoti kolimatorių su Trijicon RMR pėdsaku

Tai priklauso nuo to, kokį įrenginį norite montuoti.

Kiti pėdsakų standartai

Yra daug skirtingų bazių kolimatorių taikikliai, bet kiti dažniausiai pasitaikantys yra šie:
